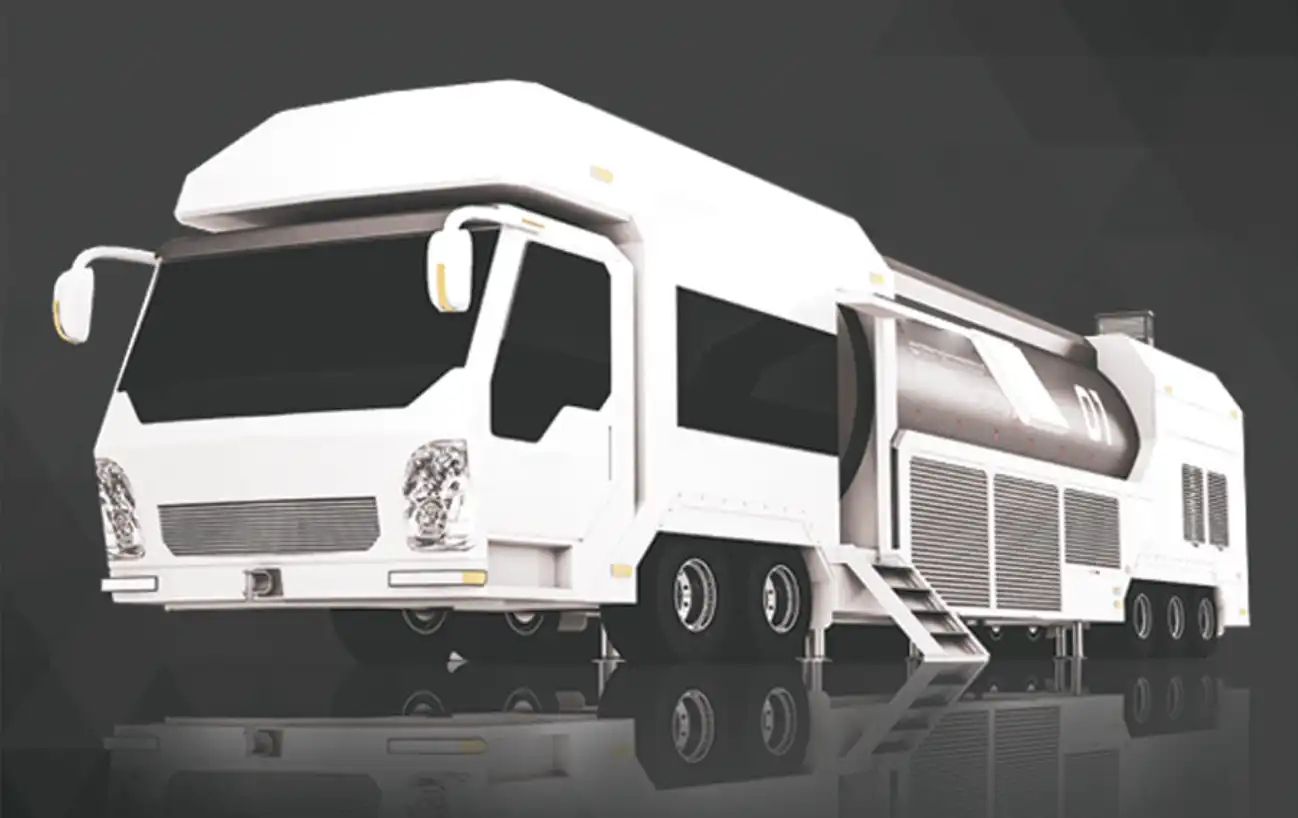

The 13T Self-Propelled Injection Steam Boiler is designed with integration, modularization, and intelligence in mind. Featuring a compact and rational structure, it occupies minimal workspace while offering high performance, easy operation, and convenient maintenance. This new-generation injection steam boiler adeptly meets field requirements for high dryness, large tonnage, and portability.
The integrated product design makes water, oil, and electrical connections more convenient, significantly enhancing overall performance. The modular construction improves both the manufacturing process and onsite installation, ensuring ease of assembly. The intelligent automatic control system enables online two-phase flow detection, water-fire tracking, wireless monitoring, and closed-loop control, collectively guaranteeing safe, efficient, energy-saving, and stable operation of the unit.
Technical Specifications
| Parameter / Model | 9.2-21-Y(Q) | 11.5-21-Y(Q) | 13-21-Y(Q) |
|---|---|---|---|
| Evaporation Capacity (t/h) | 9.2 | 11.5 | 15 |
| Working Pressure (MPa) | ≤21 | ≤21 | ≤21 |
| Steam Temperature (℃) | ≤370 | ≤370 | ≤370 |
| Exhaust Temperature (℃) | ≤160 | ≤160 | ≤160 |
| Thermal Efficiency (%) | 90-92 | 90-92 | 90-92 |
| Steam Dryness (%) | 80-85 | 80-85 | 80-85 |
| Fuel Type | Heavy Oil/Natural Gas | Heavy Oil/Natural Gas | Heavy Oil/Natural Gas |
| Power Consumption (kw) | ≤135 | ≤155 | ≤180 |
| Oil Consumption (Kg/h) | 505 | 630 | 715 |
| Gas Consumption (Nm³/h) | 615 | 770 | 870 |
| Loading Method | Mobile | Mobile | Mobile |
| Unit Weight (Ton) | 45 | 52 | 55 |
| Dimensions (m) | 16.8×3.2×4.2 | 17×3.5×4.3 | 18×3.5×4.3 |
