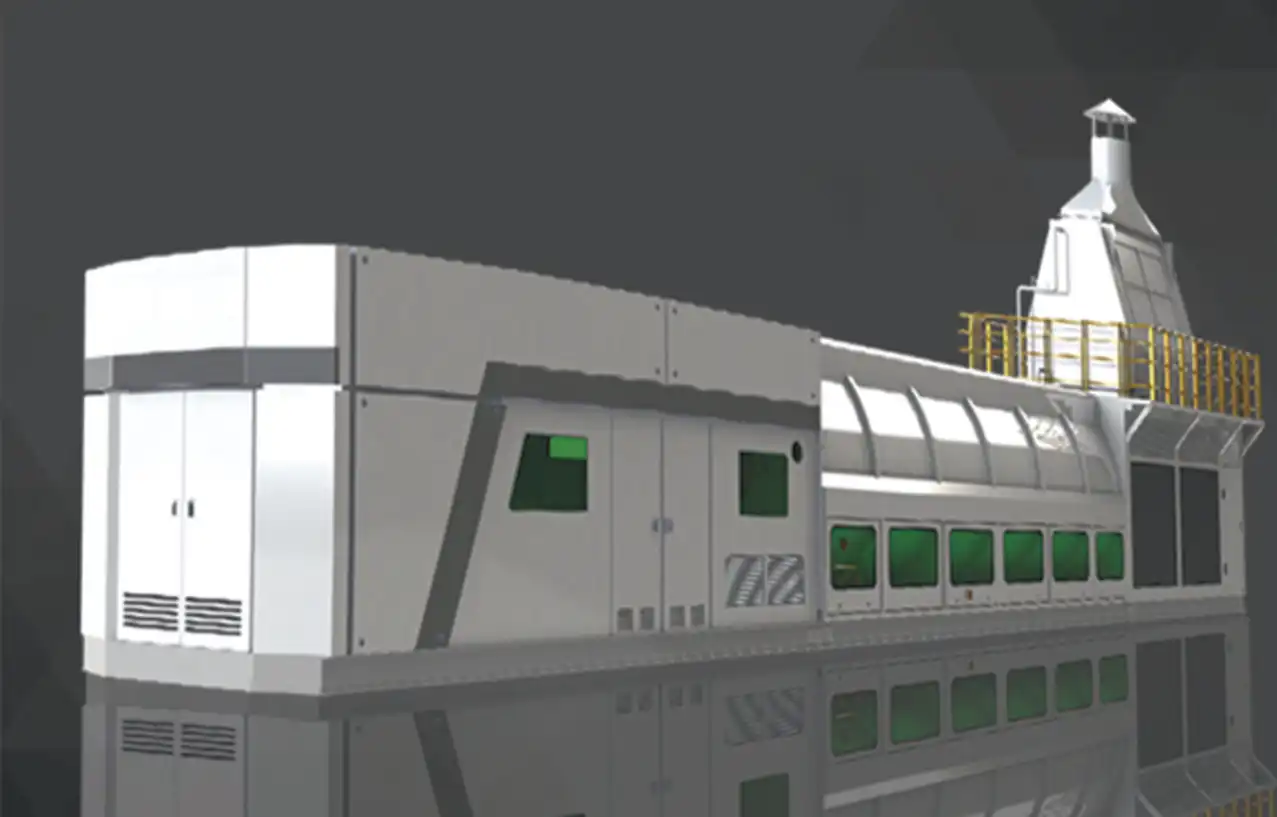

The 23T Skid-Mounted Steam Injection Boiler adopts integrated, modular, and intelligent design concepts. Its overall structure is compact and rational, with a small operation footprint, high performance, easy operation, and simple maintenance. This effectively meets on-site demands for high dryness, large tonnage, and mobility, making it a new generation of steam injection boiler equipment.
The “integrated” product design simplifies water, oil, and electrical connections, significantly enhancing product performance. The “modular” process streamlines manufacturing and installation. Additionally, the “intelligent” automatic control system achieves online two-phase flow detection, water-fire tracking, wireless monitoring, and closed-loop control, ensuring safe, efficient, energy-saving, and stable operation of the unit.
| Parameter / Model | 18-21-Y(Q) | 23-21-Y(Q) | 50-21-Y(Q) |
|---|---|---|---|
| Evaporation Capacity (t/h) | 18 | 23 | 50 |
| Working Pressure (MPa) | ≤21 | ≤21 | ≤21 |
| Steam Temperature (°C) | ≤370 | ≤370 | ≤370 |
| Exhaust Temperature (°C) | ≤160 | ≤160 | ≤160 |
| Thermal Efficiency (%) | 90-92 | 90-92 | 90-92 |
| Steam Dryness (%) | 80-85 | 80-85 | 80-85 |
| Fuel Type | Heavy Oil / Natural Gas | Heavy Oil / Natural Gas | Heavy Oil / Natural Gas |
| Power Consumption (kW) | ≤225 | ≤285 | ≤550 |
| Fuel Oil (Kg/h) | 990 | 1265 | 2750 |
| Natural Gas (Nm3/h) | 1200 | 1540 | 3350 |
| Mounting Method | Skid-Mounted | Skid-Mounted | Skid-Mounted |
| Net Weight (Ton) | 66 | 98 | 224 |
| Dimensions (m) | 18 × 3.2 × 8.1 | 24 × 4.3 × 10 | 26 × 5.1 × 11.5 |
