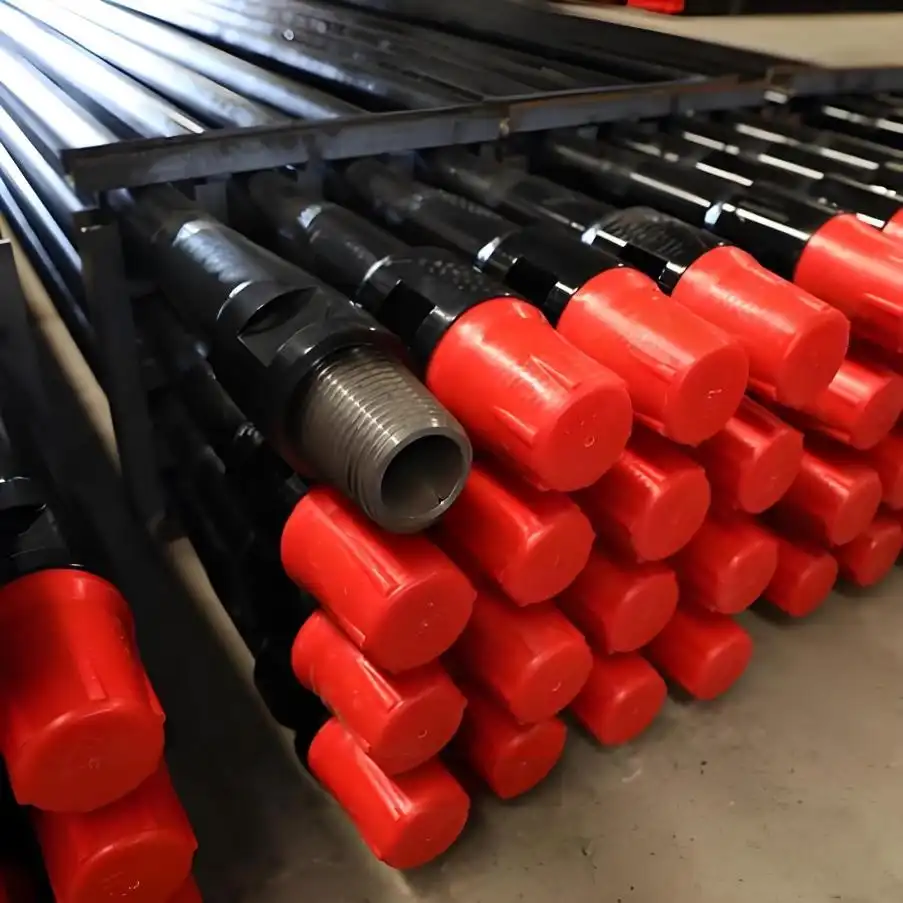

API标准钻杆
关键技术参数：
- 型号：V150，酸性工况
- 尺寸范围：2-3/8″ 至 6-5/8″
- 钢级： E75, X95, G105, S135, V150 和 SS105
- 镦粗样式： 内部镦粗 (IU)，外部镦粗 (EU)，内外部镦粗 (IEU)
- 长度范围： R1、R2 和 R3
- 适用标准： API 5DP-PSL 1, PSL 2, PSL 3, API 7-2, RP7G, DS-1, and NS-1
钻杆规格
| Size (in) | Nominal Weight (lb/ft) | Steel Grade | Upset Style | Connection Type (4) | Pipe Body OD (Ddp, mm) | Pipe Wall Thickness (t, mm) | Weld Neck OD (Dte, mm) (2) | Tool Joint OD (D, mm) | Pin ID (dp, mm) | Bevel Diameter (Df, mm) | Approx. Mass (kg/m) (3) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 14 | E | IU | NC40 | 101.6 | 8.38 | 106.4 | 133.4 | 71.4 | 127.4 | 22.42 |
| 4 | 14 | X, D | IU | NC40 | 101.6 | 8.38 | 106.4 | 133.4 | 68.3 | 127.4 | 22.76 |
| 4 | 14 | G, F | IU | NC40 | 101.6 | 8.38 | 106.4 | 139.7 | 61.9 | 127.4 | 23.61 |
| 4 | 14 | S, V, U | IU | NC40 | 101.6 | 8.38 | 106.4 | 139.7 | 50.8 | 127.4 | 24.03 |
| 4 | 15.7 | G, F | IU | NC40 | 101.6 | 9.65 | 106.4 | 139.7 | 61.9 | 127.4 | 26.07 |
| 4-½ | 13.75 | E | IU | NC46 | 114.3 | 6.88 | 119.1 | 152.4 | 85.7 | 145.26 | 22.5 |
| 2-⅜ | 6.65 | E | EU | NC26 | 60.32 | 7.11 | 65.1 | 85.7 | 44.5 | 82.95 | 10.45 |
| 2-⅜ | 6.65 | X, G, D, F | EU | NC26 | 60.32 | 7.11 | 65.1 | 85.7 | 44.5 | 82.95 | 10.58 |
| 2-⅞ | 10.4 | E | EU | NC31 | 73.02 | 9.19 | 81 | 104.8 | 54 | 100.41 | 16.25 |
| 2-⅞ | 10.4 | X, G, D, F | EU | NC31 | 73.02 | 9.19 | 81 | 104.8 | 50.8 | 100.41 | 16.5 |
| 2-⅞ | 10.4 | S, V, U | EU | NC31 | 73.02 | 9.19 | 81 | 111.1 | 41.3 | 100.41 | 17.19 |
| 3-½ | 9.5 | E | EU | NC38 | 88.9 | 6.45 | 98.4 | 120.7 | 68.3 | 116.28 | 15.77 |
| 3-½ | 13.3 | E | EU | NC38 | 88.9 | 9.35 | 98.4 | 120.7 | 68.3 | 116.28 | 20.77 |
| 3-½ | 13.3 | X, D | EU | NC38 | 88.9 | 9.35 | 98.4 | 127 | 65.1 | 116.28 | 21.76 |
| 3-½ | 13.3 | G, F | EU | NC38 | 88.9 | 9.35 | 98.4 | 127 | 61.9 | 116.28 | 21.9 |
| 3-½ | 13.3 | S, V, U | EU | NC38 | 88.9 | 9.35 | 98.4 | 127 | 54 | 116.28 | 22.22 |
| 3-½ | 15.5 | E | EU | NC38 | 88.9 | 11.4 | 98.4 | 127 | 65.1 | 116.28 | 24.67 |
| 3-½ | 15.5 | X, D | EU | NC38 | 88.9 | 11.4 | 98.4 | 127 | 61.9 | 116.28 | 25.07 |
| 3-½ | 15.5 | G, F | EU | NC38 | 88.9 | 11.4 | 98.4 | 127 | 54 | 116.28 | 25.38 |
| 3-½ | 15.5 | S, V, U | EU | NC40 | 88.9 | 11.4 | 98.4 | 139.7 | 57.2 | 127.4 | 26.19 |
| 4 | 14 | E | EU | NC46 | 101.6 | 8.38 | 114.3 | 152.4 | 82.6 | 145.26 | 23.67 |
| 4 | 14 | X, G, D, F | EU | NC46 | 101.6 | 8.38 | 114.3 | 152.4 | 82.6 | 145.26 | 24.12 |
| 4 | 14 | S, V, U | EU | NC46 | 101.6 | 8.38 | 114.3 | 152.4 | 76.2 | 145.26 | 24.46 |
| 4-½ | 13.75 | E | EU | NC50 | 114.3 | 6.88 | 127 | 168.3 | 95.3 | 153.99 | 23.65 |
| 4-½ | 16.6 | E | EU | NC50 | 114.3 | 8.56 | 127 | 168.3 | 95.3 | 153.99 | 27.51 |
| 4-½ | 16.6 | X, G, D, F | EU | NC50 | 114.3 | 8.56 | 127 | 168.3 | 95.3 | 153.99 | 28.07 |
| 4-½ | 16.6 | S, V, U | EU | NC50 | 114.3 | 8.56 | 127 | 168.3 | 88.9 | 153.99 | 28.47 |
| 4-½ | 20 | E | EU | NC50 | 114.3 | 10.92 | 127 | 168.3 | 92.1 | 153.99 | 32.93 |
| 4-½ | 20 | X, G, D, F | EU | NC50 | 114.3 | 10.92 | 127 | 168.3 | 88.9 | 153.99 | 33.63 |
| 4-½ | 20 | S, V, U | EU | NC50 | 114.3 | 10.92 | 127 | 168.3 | 76.2 | 153.99 | 34.34 |
| 4-½ | 16.6 | E | IEU | NC46 | 114.3 | 8.56 | 119.1 | 158.8 | 82.6 | 145.26 | 27.36 |
| 4-½ | 16.6 | X, G, D, F | IEU | NC46 | 114.3 | 8.56 | 119.1 | 158.8 | 76.2 | 145.26 | 27.73 |
| 4-½ | 16.6 | S, V, U | IEU | NC46 | 114.3 | 8.56 | 119.1 | 158.8 | 69.9 | 145.26 | 28.04 |
| 4-½ | 20 | E | IEU | NC46 | 114.3 | 10.92 | 119.1 | 158.8 | 76.2 | 145.26 | 32.94 |
| 4-½ | 20 | X, D | IEU | NC46 | 114.3 | 10.92 | 119.1 | 158.8 | 69.9 | 145.26 | 33.69 |
| 4-½ | 20 | G, F | IEU | NC46 | 114.3 | 10.92 | 119.1 | 158.8 | 63.5 | 145.26 | 33.97 |
| 4-½ | 20 | S, V, U | IEU | NC46 | 114.3 | 10.92 | 119.1 | 158.8 | 57.2 | 145.26 | 34.23 |
| 5 | 19.5 | E | IEU | NC50 | 127 | 9.19 | 130.2 | 168.3 | 95.3 | 153.99 | 31.79 |
| 5 | 19.5 | X, D | IEU | NC50 | 127 | 9.19 | 130.2 | 168.3 | 88.9 | 153.99 | 32.58 |
| 5 | 19.5 | G, F | IEU | NC50 | 127 | 9.19 | 130.2 | 168.3 | 82.6 | 153.99 | 32.95 |
| 5 | 19.5 | S, V, U | IEU | NC50 | 127 | 9.19 | 130.2 | 168.3 | 69.9 | 153.99 | 33.6 |
| 5 | 19.5 | E | IEU | 5 1/2 FH | 127 | 9.19 | 130.2 | 177.8 | 95.3 | 170.66 | 33.22 |
| 5 | 19.5 | X, G, D, F | IEU | 5 1/2 FH | 127 | 9.19 | 130.2 | 177.8 | 95.3 | 170.66 | 33.61 |
| 5 | 19.5 | S, V, U | IEU | 5 1/2 FH | 127 | 9.19 | 130.2 | 184.2 | 88.9 | 170.66 | 34.89 |
| 5 | 25.6 | E | IEU | NC50 | 127 | 12.7 | 130.2 | 168.3 | 88.9 | 153.99 | 40.73 |
| 5 | 25.6 | X, D | IEU | NC50 | 127 | 12.7 | 130.2 | 168.3 | 76.2 | 153.99 | 41.8 |
| 5 | 25.6 | G, F | IEU | NC50 | 127 | 12.7 | 130.2 | 168.3 | 69.9 | 153.99 | 42.11 |
| 5 | 25.6 | E | IEU | 5 1/2 FH | 127 | 12.7 | 130.2 | 177.8 | 88.9 | 170.66 | 42.14 |
| 5 | 25.6 | X, D | IEU | 5 1/2 FH | 127 | 12.7 | 130.2 | 177.8 | 88.9 | 170.66 | 42.51 |
| 5 | 25.6 | G, F | IEU | 5 1/2 FH | 127 | 12.7 | 130.2 | 184.2 | 88.9 | 170.66 | 43.35 |
| 5 | 25.6 | S, V, U | IEU | 5 1/2 FH | 127 | 12.7 | 130.2 | 184.2 | 82.6 | 170.66 | 43.75 |
| 5-½ | 21.9 | E | IEU | 5 1/2 FH | 139.7 | 9.17 | 144.5 | 177.8 | 101.6 | 170.66 | 35.43 |
| 5-½ | 21.9 | X, D | IEU | 5 1/2 FH | 139.7 | 9.17 | 144.5 | 177.8 | 95.3 | 170.66 | 36.36 |
| 5-½ | 21.9 | G, F | IEU | 5 1/2 FH | 139.7 | 9.17 | 144.5 | 184.2 | 88.9 | 170.66 | 37.61 |
| 5-½ | 21.9 | S, V, U | IEU | 5 1/2 FH | 139.7 | 9.17 | 144.5 | 190.5 | 76.2 | 180.18 | 39.27 |
| 5-½ | 24.7 | E | IEU | 5 1/2 FH | 139.7 | 10.54 | 144.5 | 177.8 | 101.6 | 170.66 | 39.19 |
| 5-½ | 24.7 | X, G, D, F | IEU | 5 1/2 FH | 139.7 | 10.54 | 144.5 | 184.2 | 88.9 | 170.66 | 41.32 |
| 5-½ | 24.7 | S, V, U | IEU | 5 1/2 FH | 139.7 | 10.54 | 144.5 | 190.5 | 76.2 | 180.18 | 42.97 |
| 5-⅞ | 23.4 | S, V, U | IEU | 5 1/2 FH | 149.22 | 9.17 | 152.4 | 184.15 | 76.2 | 170.66 | 40.01 |
| 5-⅞ | 26.3 | S, V, U | IEU | 5 1/2 FH | 149.22 | 10.54 | 152.4 | 190.5 | 82.55 | 180.19 | 44.49 |
| 6-⅝ | 25.2 | E | IEU | 6 5/8 FH | 168.28 | 8.38 | 176.2 | 203.2 | 127 | 195.66 | 41.03 |
| 6-⅝ | 25.2 | X, D | IEU | 6 5/8 FH | 168.28 | 8.38 | 176.2 | 203.2 | 127 | 195.66 | 41.03 |
| 6-⅝ | 25.2 | G, F | IEU | 6 5/8 FH | 168.28 | 8.38 | 176.2 | 209.6 | 120.7 | 195.66 | 42.6 |
| 6-⅝ | 25.2 | S, V, U | IEU | 6 5/8 FH | 168.28 | 8.38 | 176.2 | 215.9 | 108 | 195.66 | 44.73 |
| 6-⅝ | 27.7 | E | IEU | 6 5/8 FH | 168.28 | 9.19 | 176.2 | 203.2 | 127 | 195.66 | 43.79 |
| 6-⅝ | 27.7 | X, G, D, F | IEU | 6 5/8 FH | 168.28 | 9.19 | 176.2 | 209.6 | 120.7 | 195.66 | 45.35 |
| 6-⅝ | 27.7 | S, V, U | IEU | 6 5/8 FH | 168.28 | 9.19 | 176.2 | 215.9 | 108 | 195.66 | 47.48 |
备注：
- 这些代码在订购时用于识别。
- Dte 的最大值设定，旨在确保与电梯的兼容性。
- 这些质量值仅供参考，并且基于特定的管体长度（例如，8.96 米）。
- 连接类型表示适用旋转肩式接头的尺寸和样式。
