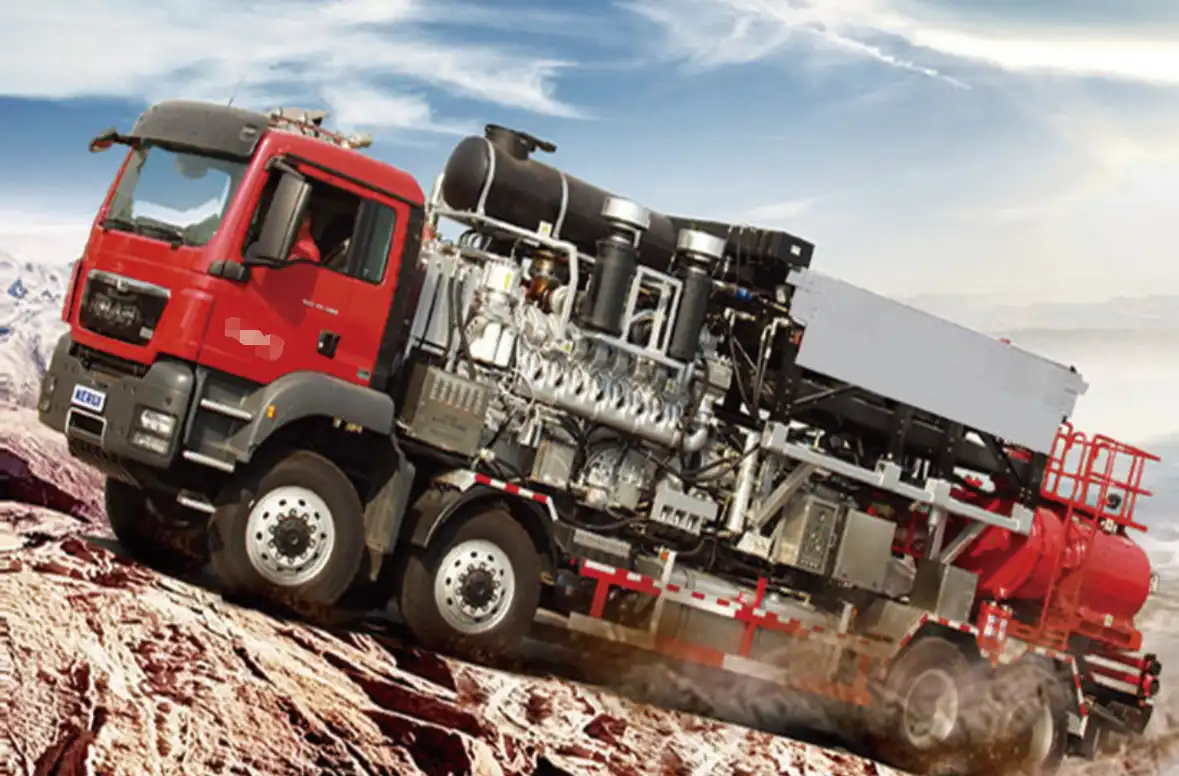

Fracturing equipment is the primary machinery used in fracturing operations. Its function is to inject high-pressure, high-displacement fracturing fluid into wells, enabling the opening of geological formations and driving proppant into the created fractures. These units are mainly used for various fracturing operations in deep, medium, and shallow wells in shale gas, coalbed methane, and other oil & gas fields. The equipment can perform both single-unit and multi-unit operations.
Key Features:
Professional truck chassis with strong off-road capability
Compatible with pumping various types of liquids
Electronic overpressure protection system
High-power, high-pressure plunger pumps with stable and reliable quality
Remote Ethernet network control for safe and reliable fracturing operations
| Model | 1200-105 | 2250-105 | 2500-105 / 140 | 3000-140 |
|---|---|---|---|---|
| Max Working Pressure (MPa) | 105 | 105 / 140 | 105 / 140 | 105 / 140 |
| Max Displacement (L/min) | 1507 / 1631 | 1873 / 2460 | 2460 / 1894 | 3133 / 2098 |
| Plunger Diameter (mm) | 76.2 / 101.6 (114.3) | 114.3 / 101.6 (101.6 / 127) | 101.6 / 95.25 (114.3 / 127) | 114.3 / 139.7 (127) |
| Overall Dimensions (mm) | 10680×2500×3870 | 11160×2500×4170 | 11500×2500×4150 | 12440×2500×4145 |
| Total Weight (kg) | 27000 | 39000 | 41000 | 46000 |
| Configuration | Truck-mounted / Skid-mounted / Trailer-mounted | |||
| Plunger Pump | KERUI / GD / SPM | |||
| Truck Chassis | MAN / BENZ / Sinotruk / KAMAZ / Kenworth / Beiben | |||
| Engine | CAT / MTU | CAT / CUMMINS / MTU | CUMMINS / MTU | CUMMINS / MTU |
| Engine Power (kW) | 882 | 1654 | 1838 | 2205 |
| Hydraulic Transmission | ALLISON / Kaixin | ALLISON / Kaixin | CAT / Kaixin | TWIN DISC / Kaixin |
| Radiator Installation | Vertical | Horizontal | Horizontal | Horizontal |
| Control System | Network automatic control, On-site/Remote network control | |||
| High Pressure Manifold System (MPa) | 105 | 105 / 140 | 105 / 140 | 105 / 140 |
| Others | Overpressure safety protection device, Mechanical overpressure protection | |||
