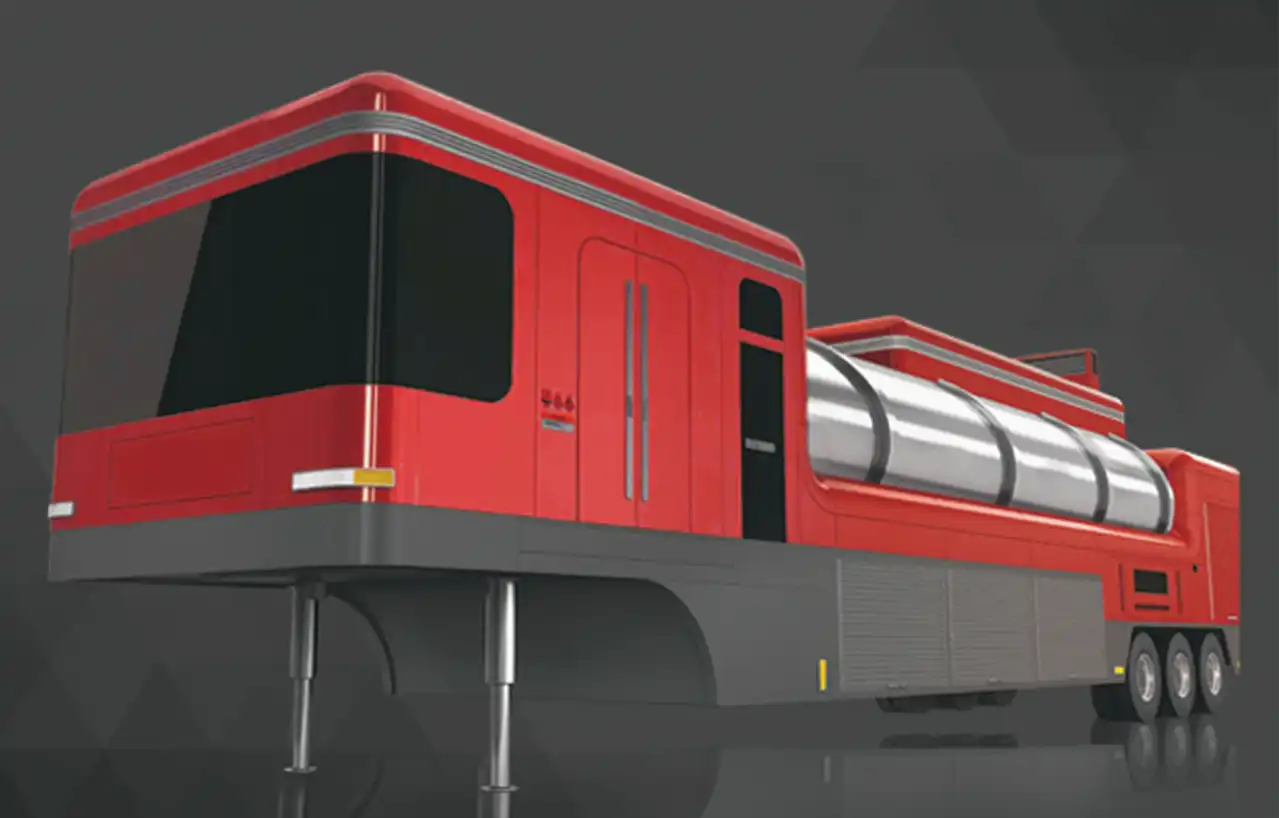

The steam injection unit adopts an integrated, modular, and intelligent design philosophy. With a compact and rational overall structure, it has a small operational footprint, high performance, easy operation, and is simple to maintain and service. These features effectively meet the field demand for high dryness, large tonnage, and mobile operation, making it a new generation of steam injection boiler equipment.
The “integrated” product design simplifies connections for water, oil, and electrical circuits, significantly enhancing product performance. The “modular” craftsmanship streamlines both the manufacturing and installation processes. In addition, the “intelligent” automatic control system enables online two-phase flow monitoring, water-fire tracking, wireless monitoring, and closed-loop control, ensuring safe, efficient, energy-saving, and stable operation of the unit.
Technical Specifications
| Parameter/Model | 9.2-21-Y(Q) | 11.5-21-Y(Q) | 13-21-Y(Q) |
|---|---|---|---|
| Evaporation Capacity (t/h) | 9.2 | 11.5 | 15 |
| Working Pressure (MPa) | ≤21 | ≤21 | ≤21 |
| Steam Temperature (℃) | ≤370 | ≤370 | ≤370 |
| Exhaust Temperature (℃) | ≤160 | ≤160 | ≤160 |
| Thermal Efficiency (%) | 90–92 | 90–92 | 90–92 |
| Steam Dryness (%) | 80–85 | 80–85 | 80–85 |
| Fuel Type | Heavy Oil/Natural Gas | Heavy Oil/Natural Gas | Heavy Oil/Natural Gas |
| Power Consumption (kW) | ≤135 | ≤155 | ≤180 |
| Fuel Consumption (Kg/h) | 505 | 630 | 715 |
| Gas Consumption (Nm³/h) | 615 | 770 | 870 |
| Installation Mode | Mobile | Mobile | Mobile |
| Net Weight (Ton) | 45 | 52 | 55 |
| Dimensions (m) | 16.8×3.2×4.2 | 17×3.5×4.3 | 18×3.5×4.3 |
