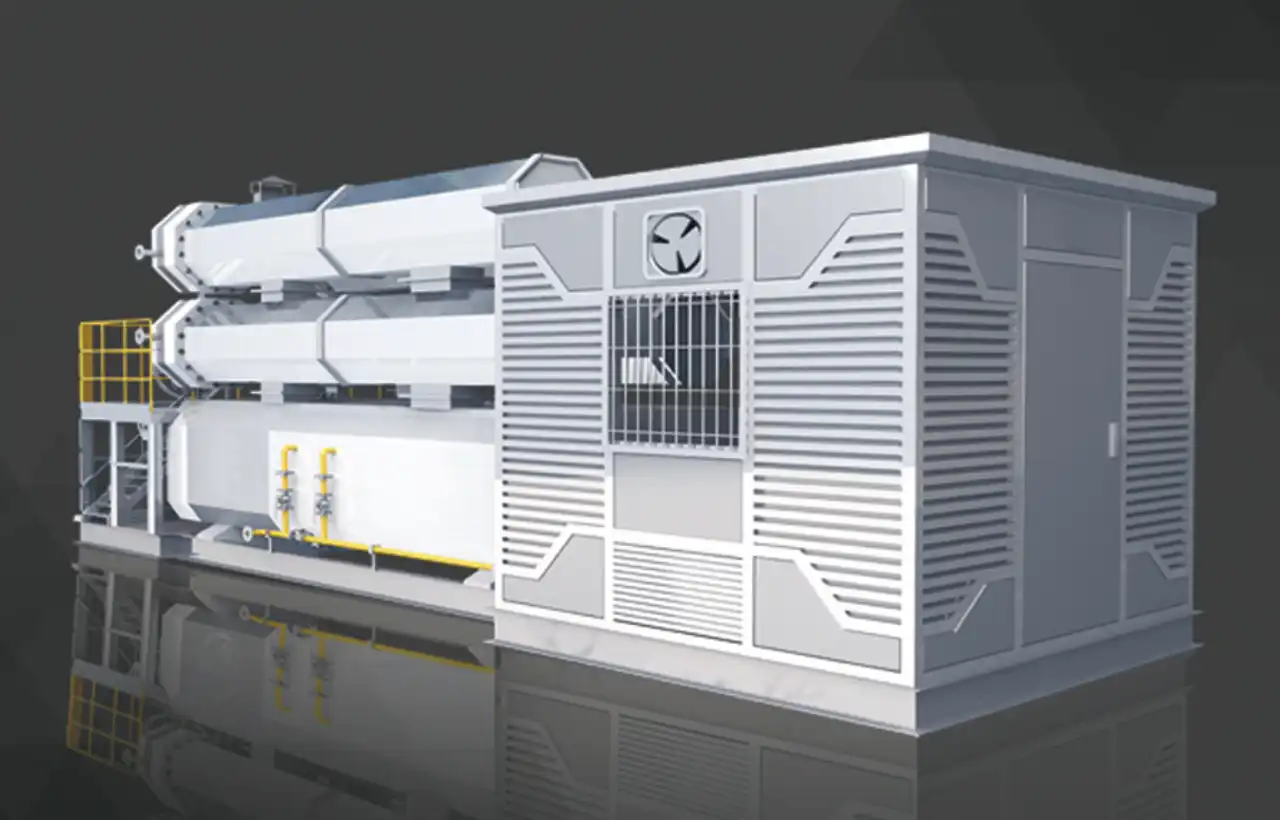

Featuring advanced low-NOx combustion technology and a fully automatic combustion process control program, our water jacket heater ensures safer and more eco-friendly operation. The product is manufactured using standardized processes and high-quality equipment, with an integrated design concept and rational structure. Internal and external components are reliable, external configurations are convenient, and the appearance is innovative—guaranteeing product quality. Designs strictly comply with TS, GB, SY, ASME, API, and other domestic and international standards.
Technical Specifications
| No. | Power (kW) | Shell Pressure (MPa) | Tube Pressure (MPa) | Thermal Efficiency (%) | Heating Medium (Y/Q/S/H) | Gas Consumption (Nm³/h) | Nitrogen Oxides (mg/m³) | Dimension (m) | Weight (T) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 400 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 40 | <30 | 5.0×2.0×2.5 | ~7.00 |
| 2 | 800 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 80 | <30 | 6.0×2.0×2.5 | ~10.0 |
| 3 | 1000 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 100 | <30 | 6.5×2.0×2.5 | ~12.0 |
| 4 | 2000 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 200 | <30 | 7.0×2.2×2.7 | ~20.0 |
| 5 | 3000 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 300 | <30 | 7.5×2.5×3.0 | ~30.0 |
| 6 | 4000 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 400 | <30 | 8.0×2.8×3.2 | ~40.0 |
| 7 | 5000 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 500 | <30 | 8.5×3.0×3.6 | ~50.0 |
| 8 | 6000 | Atmospheric~1.0 | 0.6~42.0 | >92 | Y/Q/S/H | 600 | <30 | 9.0×3.2×3.8 | ~60.0 |
